ULTRASONIC DIFFUSER AND HUMIDIFIER FLASK ULTRASONIC DIFFUSER & HUMIDIFIER FLASK

SUPREME AROMATHERAPY

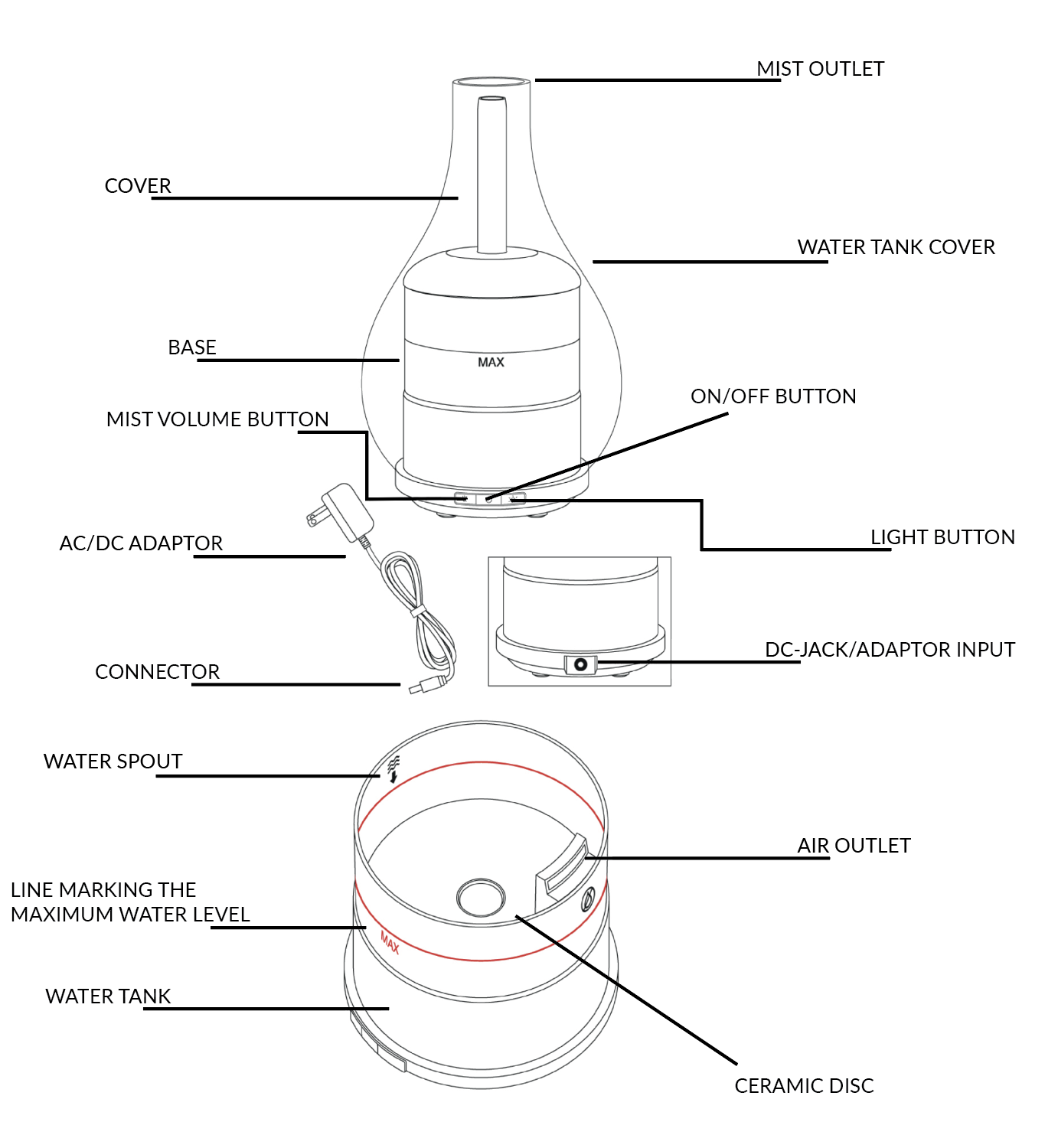

DESCRIPTION

- Read the instructions completely before using the product.
- To reduce the risk of injury, close supervision is necessary if the product is used around children and pets.
- Do not insert your fingers or hands into the product.
- The diffuser is for indoor use only.
- This diffuser should be used as an aromatherapy or room diffuser, it is not designed for inhalation.
- The appliance can only be used with the power supply supplied with the appliance.
- Before the first use and before the following uses, inspect the product carefully. Do not use if any of its components are damaged.
- Never touch the adapter with wet hands. Electric shock or injury may occur.
- To avoid the risk of fire, unplug the diffuser immediately and stop using it if it gives off smoke or a burning smell.
- For optimal maintenance, use mineral water (bottled or tap water). Do not exceed the maximum water level (120 ml/4 fl oz). Overfilling can cause damage.
- This diffuser can only be used with pure essential oils or homemade fragrances that are added to water. Always pour water first before adding essential oils or homemade fragrances.
- Unplug the appliance before performing any handling, such as cleaning or filling operations.
- If you are not going to use the appliance, empty the tank.
- Do not remove the screen or cover the diffuser when using the appliance.
- Change the water frequently to avoid a buildup of dirt that could damage the appliance.
- Clean the water tank every week. Do not use chemicals (such as acids, alkalis, etc.) or corrosive metal tools or detergents to clean the appliance.
- If water leaks into the appliance, unplug the diffuser immediately and allow it to dry for at least three days before using it again.
- Do not place the device on surfaces that can be damaged by essential oils or homemade fragrances.
- The safe use of this device is the responsibility of the user.
- Save these instructions for future reference.

PRECAUTIONS

The warnings, precautions, and instructions described in this user manual cannot cover all possible conditions and situations that may occur. The user must understand that common sense and caution are factors that cannot be incorporated into this product and that the installer or user must provide. This product is intended for use by adults only. Keep the product out of the reach of children and pets.

INSTALLATION INSTRUCTIONS

Note: Be careful when handling the diffuser because the ceramic shade is fragile and not attached to the plastic base. You need to hold the plastic base with one hand and the ceramic shade with the other.

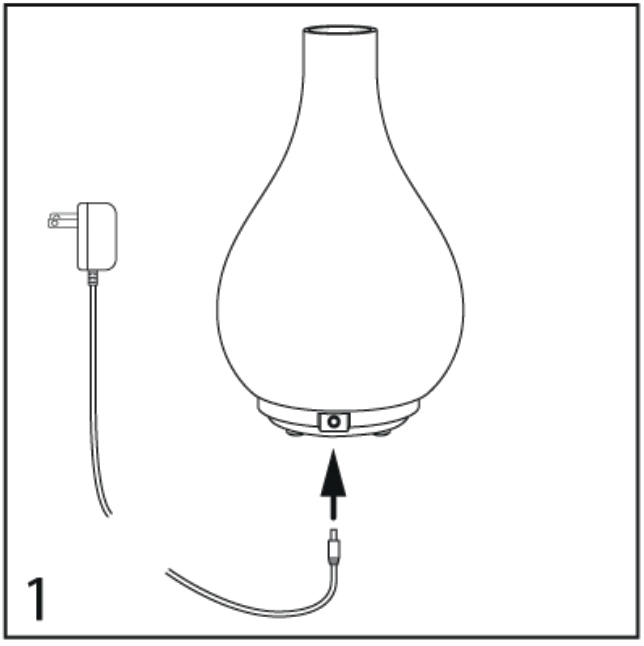

1. Insert the adapter connector into the DC connector input on the diffuser base.

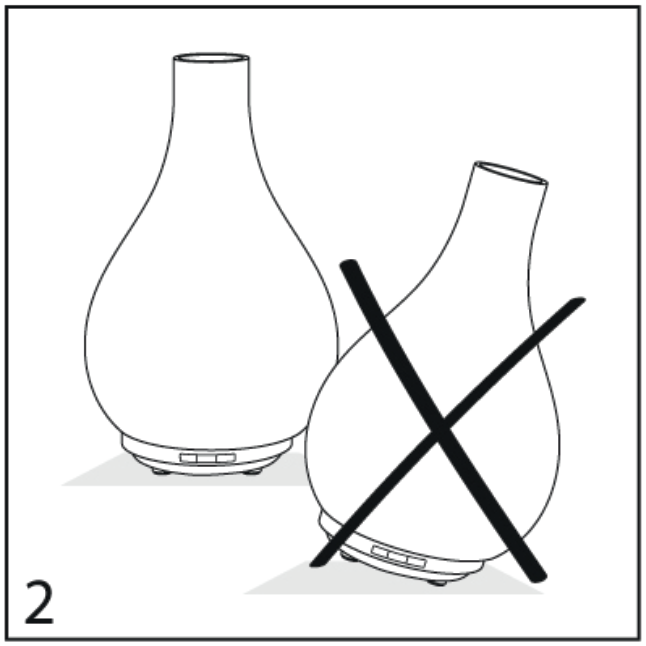

2. Place the diffuser on a flat, stable surface, away from the edges.

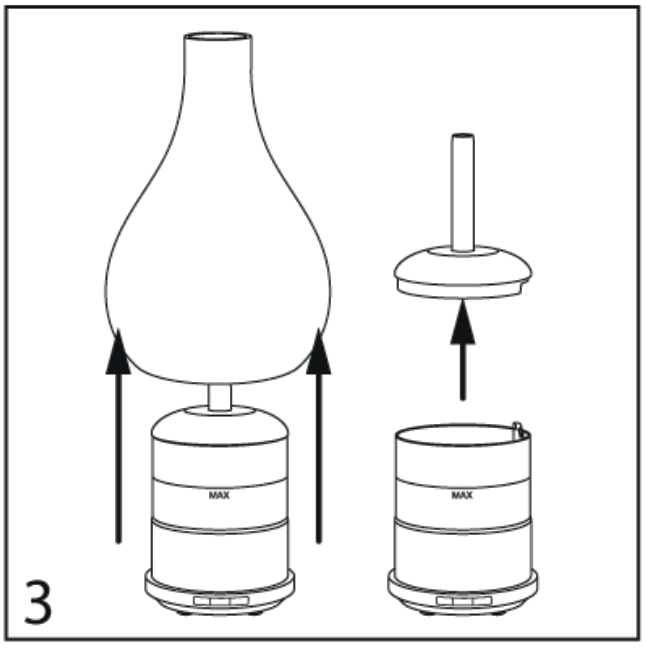

3. Remove the ceramic screen from the diffuser.

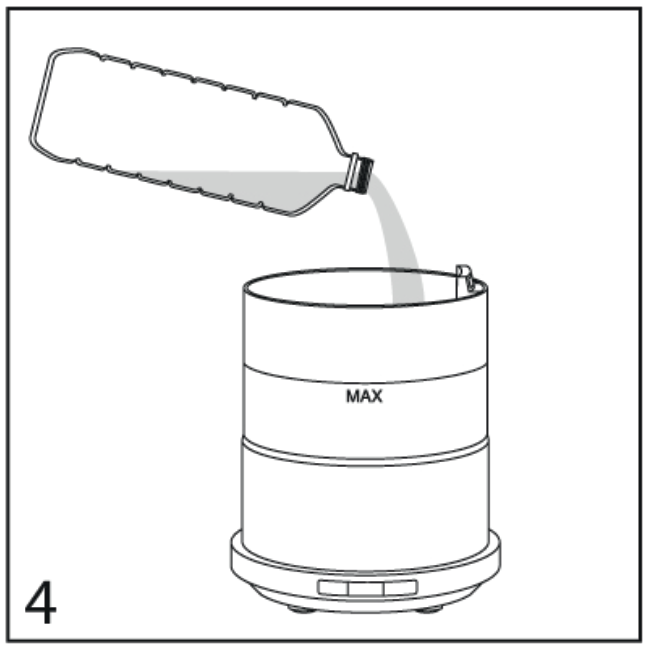

4. Pour mineral water (bottled or tap water) into the water reservoir to the maximum level indicated (120 ml/4 fl oz). Do not exceed the water filling line. Overfilling can cause damage.

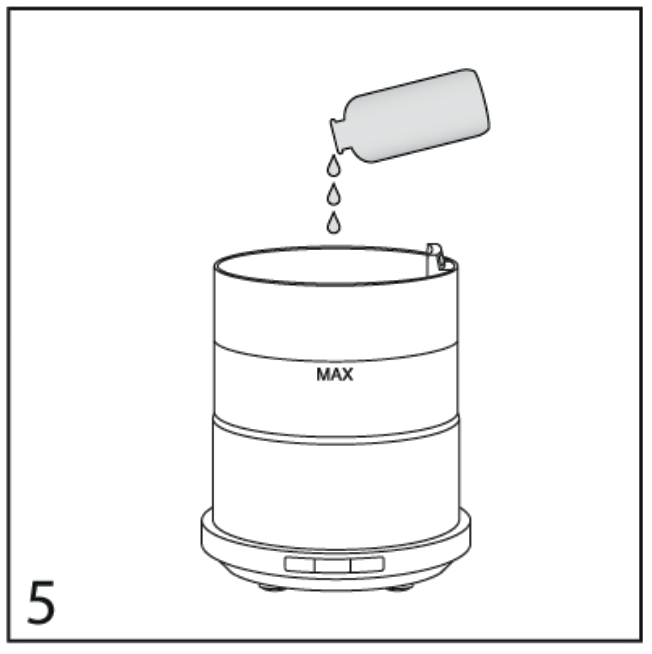

5. Add a few drops of essential oils (2 to 5 drops) or homemade fragrances (3 to 7 drops) to the water reservoir.

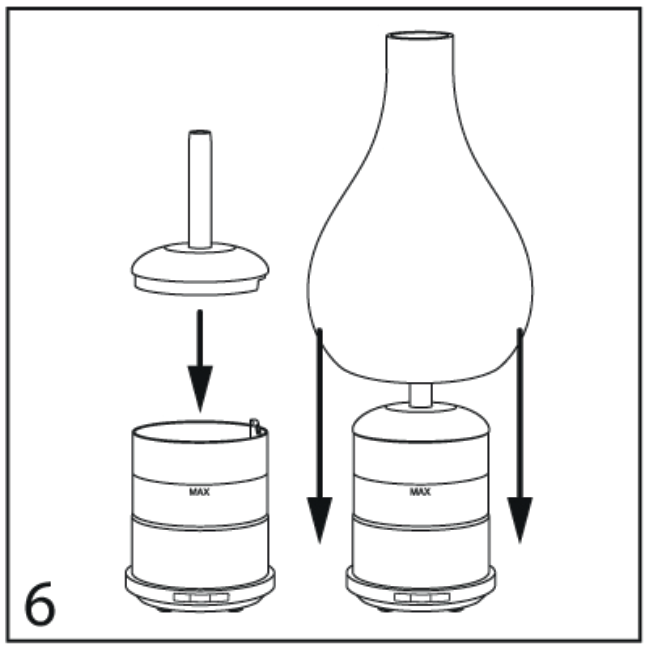

6. Carefully place the ceramic shade back into the base of the diffuser. Use caution when handling the product. The ceramic screen of the plastic base is not attached.

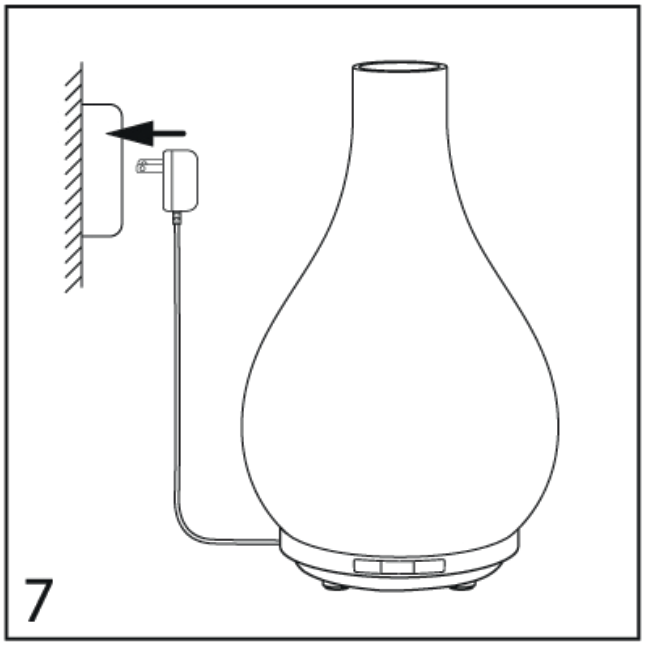

7. With dry hands, plug the adapter into a power outlet.



OPERATING INSTRUCTIONS

The diffuser has 3 function buttons on the side:

BUTTON No. 1 (Central) – ON/OFF 1. Press once to start continuous mode diffusion at the highest diffusion volume (30 mL/h) 2. Press a second time to start diffusion for 60 minutes and then OFF 3. Press a third time for an intermittent broadcast (30 seconds ON/30 seconds OFF for 120 minutes and then OFF) 4. Press a fourth time to OFF the diffuser

BUTTON No. 2 (right) – Light 1. Press once to TURN ON the light 2. Press a second time to turn the light OFF

BUTTON No. 3 (left) – Broadcast volume control 1. Press once for medium volume: 22ml/h 2. Press a second time for low volume: 15ml/h 3. Press a third time for high volume: 30ml/h

Remark: If the water level in the tank is too low or if there is no water, the diffuser stops automatically. To return to normal operation, fill the tank by following the steps in the "Installation Instructions".

MAINTENANCE AND STORAGE INSTRUCTIONS

We recommend changing the water in the tank frequently and cleaning the diffuser once or twice a week, especially if you want to change the fragrance.

1. Turn off the device and remove the plug from the device and outlet.

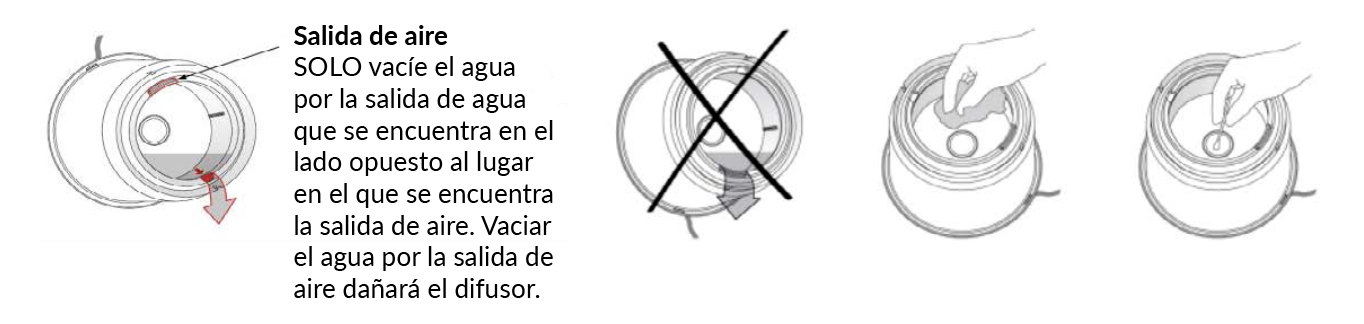

2. Remove the ceramic screen. ONLY empty the water through the water outlet that is on the opposite side of where the air outlet is located. Emptying the water through the air outlet will damage the diffuser.
3. The water tank should be emptied and cleaned frequently. Do not use commercial cleaning products as they may adversely affect the operation of the device. Use only a cotton swab or cloth to clean the water reservoir. Gently wipe with distilled vinegar to remove mineral deposits or rub with alcohol to remove residue from essential oils. Do not immerse the product in water.
4. Wait until the device is completely dry before storing it in a cool, dry place.


TROUBLESHOOTING

WON'T TURN ON - Check that the AC/DC adapter is plugged into the device and into a power outlet. - Check that there is enough water in the reservoir and that it is not too full.

DOES NOT GIVE OFF STEAM - Check that there is enough water in the reservoir and that it is not too full.

SPECIFICATIONS

- Model Number: NA-401-120 - Dimensions: 11 x 11 x 16 cm - Liquid Capacity: 120 ml (4 fl oz) - Spray rate: 15-30 ml/h - Input power: AC 100-240 V, 50/60 Hz - Output power: DC 24V 500mA - Country of Origin: China


EL TALLER DE ALQUIMIA, S.L.

ORIGIN

Distributed by: CBOCS Distribution, Inc. 900 Hutchinson Place, Lebanon, TN 37090
